Tiger Universal Lifting Beam Clamps — 3T–5T
Tiger Universal Lifting Beam Clamps available across the 3T–5T range. Compare the models below and select the capacity and configuration for your enquiry.
Product information
Technical data sheet
Download technical data sheet (PDF) ↗

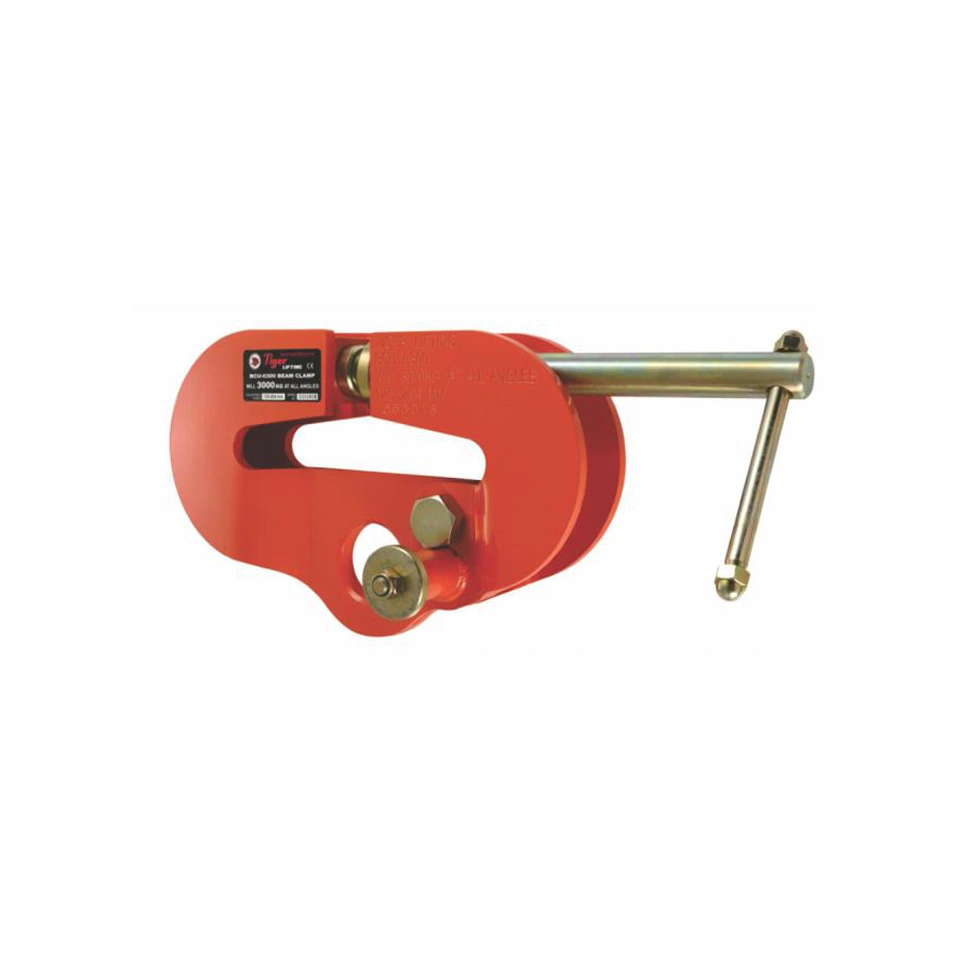

Catalogue photograph shown. Confirm the selected model, dimensions and application when requesting your quote.
Product range
Tiger Universal Lifting Beam Clamps available across the 3T–5T range. Compare the models below and select the capacity and configuration for your enquiry.
Capacity / size range: 3T–5T
Specifications for selected model: BTBCU050 — 5T
Supported Specifications
- Capacity: 5T
- Track-width range: 125–305 mm
- A: 524 mm
- B: 70 mm
- C: 74 mm
- D: 72 mm
- E: 32 mm
- F: 270 mm
- G: 120 mm
- H: 25 mm
- J: 28 mm
- K: 40 mm
- Net weight: 27.0 kg
Data Sheet Limitations
Only specifications explicitly available in the supplied source are shown. Confirm suitability, current certification and availability before use or purchase.
Models and capacities
Tiger Universal Lifting Beam Clamps — 3T–5T. Select a model to view its specifications.
Check before ordering
- Beam-flange dimensions and clamp range
- Load direction and planned attachment arrangement
- Clearance and required documentation
Documentation & supply
Confirm the required configuration and documentation when requesting your quotation. The team will confirm availability and suitability for the intended application.
