MaxiHoist Electric Chain Hoists — 1T–5T
MaxiHoist Electric Chain Hoists available across the 1T–5T range. Compare the models below and select the capacity and configuration for your enquiry.
Product information
Technical data sheet
Download technical data sheet (PDF) ↗

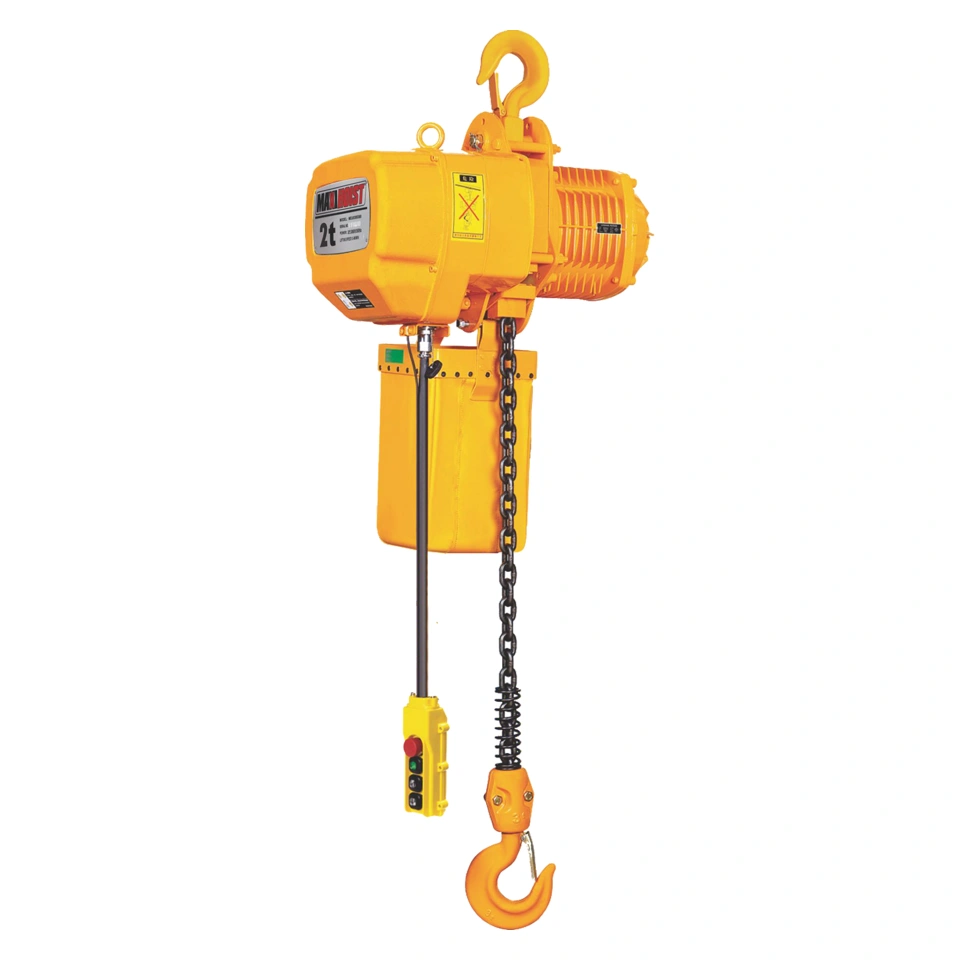

Catalogue photograph shown. Confirm the selected model, dimensions and application when requesting your quote.
Product range
MaxiHoist Electric Chain Hoists available across the 1T–5T range. Compare the models below and select the capacity and configuration for your enquiry.
Capacity / size range: 1T–5T
Specifications for selected model: MEU020S380/2F — 2T
Supported Specifications
- Capacity: 2T
- Lifting height: 3/9 m
- Lifting speed: 3.4 m/min
- Chain falls: 2
- Motor power: 1.5 kW
- Motor speed: 1,440 rpm
- Phases: 3
- Voltage: 380 V
- Frequency: 50 Hz
Data Sheet Limitations
Only specifications explicitly available in the supplied source are shown. Confirm suitability, current certification and availability before use or purchase.
Models and capacities
MaxiHoist Electric Chain Hoists — 1T–5T. Select a model to view its specifications.
| Model | Capacity / size | Configuration |
|---|---|---|
| MEU010S380 | 1T | chain falls: 1 |
| MEU020S380 | 2T | chain falls: 1 |
| MEU020S380/2F | 2T | chain falls: 2 |
| MEU030S380 | 3T | chain falls: 1 |
| MEU050S380 | 5T | chain falls: 2 |
Check before ordering
- Capacity, height of lift and operating duty
- Power supply, controls and suspension
- Environment, headroom and travel requirements
Documentation & supply
Confirm the required configuration and documentation when requesting your quotation. The team will confirm availability and suitability for the intended application.
