Tiger TCB Chain Blocks — 0,5T–30T
Tiger TCB Chain Blocks available across the 0,5T–30T range. Compare the models below and select the capacity and configuration for your enquiry.
Product information
Technical data sheet
Download technical data sheet (PDF) ↗

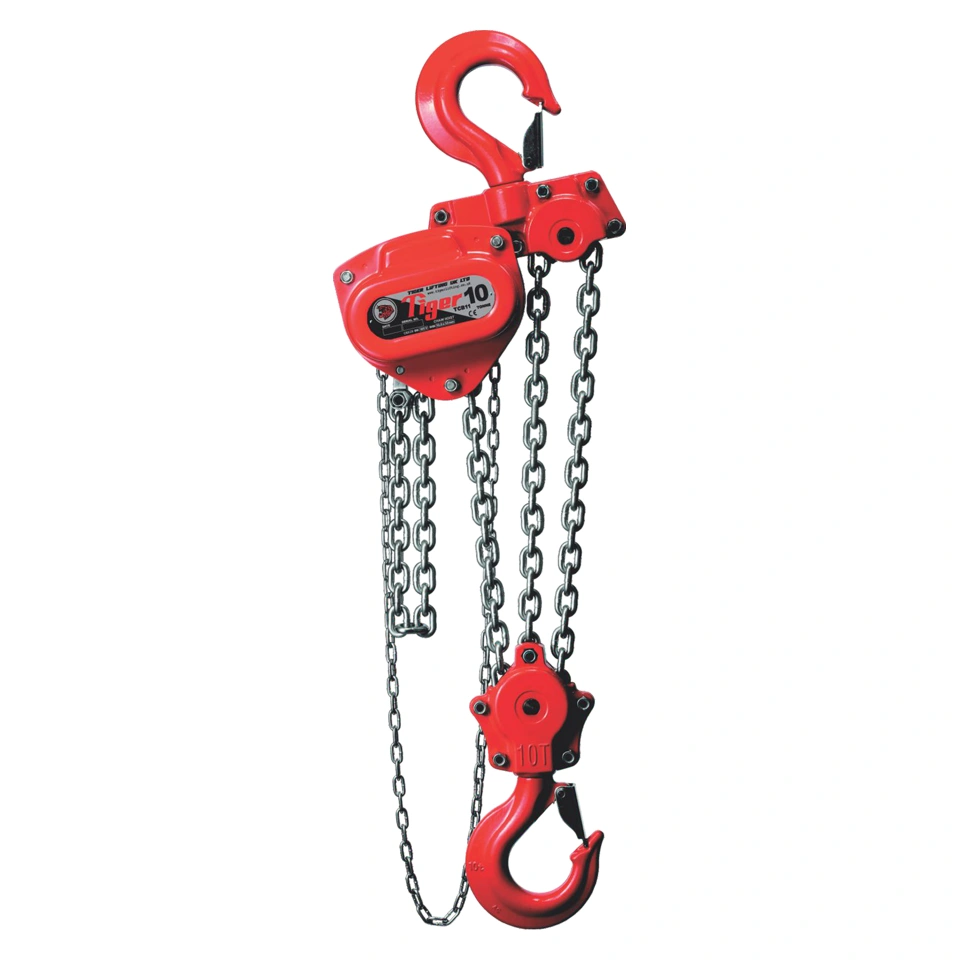

Catalogue photograph shown. Confirm the selected model, dimensions and application when requesting your quote.
Product range
Tiger TCB Chain Blocks available across the 0,5T–30T range. Compare the models below and select the capacity and configuration for your enquiry.
Capacity / size range: 0,5T–30T
Specifications for selected model: TCU150 — 15T
Supported Specifications
- Capacity: 15T
- Effort: 41 kg
- Headroom: 840 mm
- Load-chain diameter: 10.0 mm
- Chain falls: 5
- Standard height of lift: 3 m
- Mass at standard lift: 131.4 kg
- Extra mass per metre: 11.85 kg
Data Sheet Limitations
Only specifications explicitly available in the supplied source are shown. Confirm suitability, current certification and availability before use or purchase.
Models and capacities
Tiger TCB Chain Blocks — 0,5T–30T. Select a model to view its specifications.
| Model | Capacity / size | Configuration |
|---|---|---|
| TCU005 | 0.5T | chain falls: 1 |
| TCU010 | 1T | chain falls: 1 |
| TCU015 | 1.5T | chain falls: 1 |
| TCU020 | 2T | chain falls: 1 |
| TCU030 | 3T | chain falls: 2 |
| TCU030S | 3T | chain falls: 1 |
| TCU050 | 5T | chain falls: 3 |
| TCU080 | 8T | chain falls: 4 |
| TCU100 | 10T | chain falls: 3 |
| TCU150 | 15T | chain falls: 5 |
| TCU200 | 20T | chain falls: 6 |
| TCU300 | 30T | chain falls: 10 |
Check before ordering
- Required capacity and height of lift
- Headroom, suspension and operating environment
- Load-chain length and hand-chain requirements
Documentation & supply
Confirm the required configuration and documentation when requesting your quotation. The team will confirm availability and suitability for the intended application.
