Tiger PROLH Lever Hoists — 0,8T–20T
Tiger PROLH Lever Hoists available across the 0,8T–20T range. Compare the models below and select the capacity and configuration for your enquiry.
Product information
Technical data sheet
Download technical data sheet (PDF) ↗

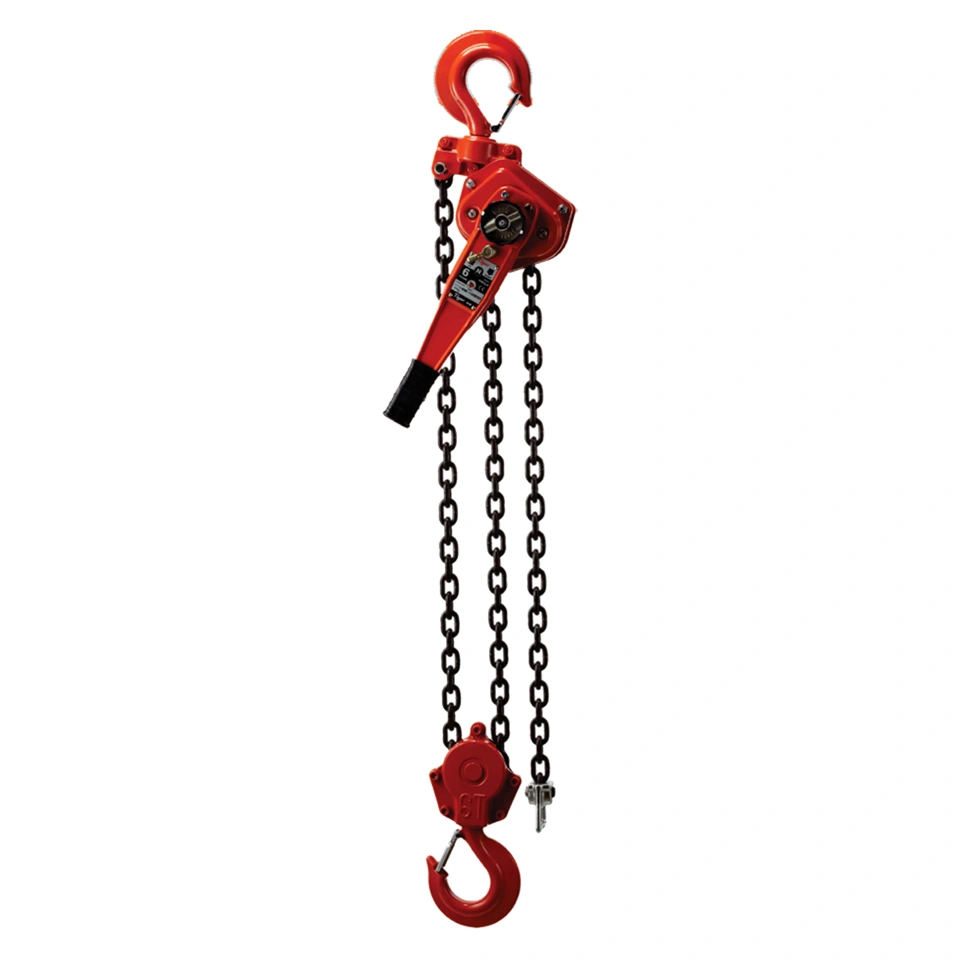

Catalogue photograph shown. Confirm the selected model, dimensions and application when requesting your quote.
Product range
Tiger PROLH Lever Hoists available across the 0,8T–20T range. Compare the models below and select the capacity and configuration for your enquiry.
Capacity / size range: 0,8T–20T
Specifications for selected model: TLU015 — 1.5T
Supported Specifications
- Capacity: 1.5T
- Operating effort: 26 kg
- Headroom: 320 mm
- Load-chain diameter: 7.1 mm
- Chain falls: 1
- Standard HOL: 1.5 m
- Mass at standard HOL: 10.7 kg
- Extra mass per metre HOL: 1.10 kg/m
Data Sheet Limitations
Only specifications explicitly available in the supplied source are shown. Confirm suitability, current certification and availability before use or purchase.
Models and capacities
Tiger PROLH Lever Hoists — 0,8T–20T. Select a model to view its specifications.
Check before ordering
- Required capacity and working length
- Clearance for operation and attachment compatibility
- Load chain and environmental requirements
Documentation & supply
Confirm the required configuration and documentation when requesting your quotation. The team will confirm availability and suitability for the intended application.
